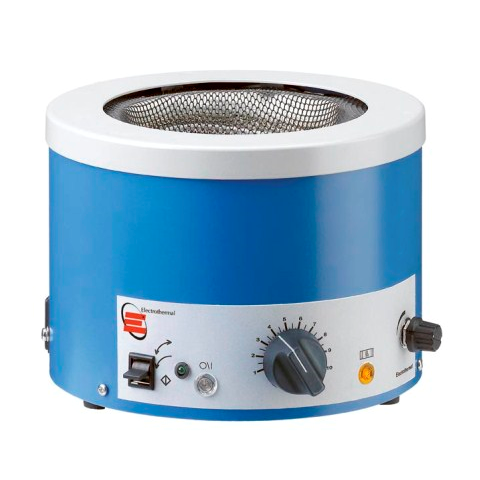

1000ml Metal Cased Heating and Stirring Mantle (230V) / CMUA1000/CE
CMUA Electromantles share all the excellent features of the CMU Electromantle, but with the added functionality of magnetic stirring. For convenience and safety, the electric circuitry for stirring is built into the base of the heater, enabling powerful stirring over a wide range of solution volumes and viscosities using a magnetic stir bar.
Magnetic stirring
Stirring operation is simply achieved by placing the correct style and sized magnetic stir bar into the flask, selecting the minimum speed on the stirring dial control and then ramping up slowly to the required speed. The correct style and size of stir bar is determined according to the flask volume and the viscosity of its contents.
Stir speed is bi-directional and easily adjustable, and as an added feature, there is an auto-recapture switch fitted. Occasionally, the magnetic coupling to the stir bar may be interupted and the stiriing motion may be temporarily lost. Should there be a need to re-activate stirring, this can be quickly remedied by reducing the stir speed and then activating the auto-recapture switch; normal stirring can then be resumed at the desired speed.
- Round bottom flask capacity of 1000ml
- Stirring speed up to 2000rpm
- Auto-recapture of magnetic stir bar; simple switch to re-activate stirring
- Unique ventilation keeps outer casing cool
- Element temperatures up to 450°C
- Built-in energy regulator
- Indicator lamps for power and heater operation
- Replaceable insulated heater and stirring cartridge
- An easy to clean powder coated aluminium outer casing
- Non-skid feet and support clamps
- Added safety features such as a grounded earth screen
| CMUA Model | CMUA1000/CE |
| Flask capacities | 1000ml |
| Case material | Powder coated aluminum |
| Max element temperature | 450°C |
| Dimensions (d x w x h), mm | 220 x 220 x 170 |
| Shipping weight, kg | 1.5 |
