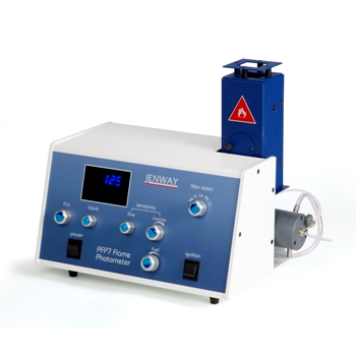

Flame Photometer (230V/50Hz) / 500801
The PFP7/C is a low temperature, single channel flame photometer that is specifically designed for use in clinical applications for the determination of sodium, potassium and lithium. The in-built lineariser circuitry of the PFP7/C enables readings of both sodium and potassium to be displayed directly in mmol/l.
The PFP7/C research flame photometer is supplied with Na, K and Li filters, connecting hoses and clips, compressor plug and drain trap (230V/50Hz).
- Designed for research applications
- Supplied with Na, K and Li filters
- Low temperature, single channel
- Flame failure safety system
- Operates with propane, butane, natural gas or LPG
Specification: Flame Photometer (230V/50Hz) / 500801
| Parameter | PFP7/C |
|---|---|
| Range | 120 to 160mmol/l Na, 0 to 10.0mmol/l K |
| Limits of detection Na | 0.2ppm |
| Limits of detection K | 0.2ppm |
| Limits of detection Li | 0.25ppm |
| Reproducibility | <1% coefficient of variation for 20 consecutive samples using 10ppm Na set to read 50 |
| Linearity | < 2% error when 3ppm Na/K and 5ppm Li are set to read 100 |
| Stability | < 2% drift over 5min when continuously aspirating 10ppm sample set to 50.0. Specificity Interference from Na/K and Li equal in concentration to test element will be <0.5% |
| Recorder output | Nominal 1.00V for a reading of 100.0 |
| Electrical supply | 90–125V or 190–250V @50/60Hz |
| Air supply | Moisture and oil free, 6 litre/min @ 14psi |
| Fuel | Propane, butane, natural gas or LPG |
| Size (w x d x h) | 420 x 360 x 300mm |
| Weight | 8kg |
