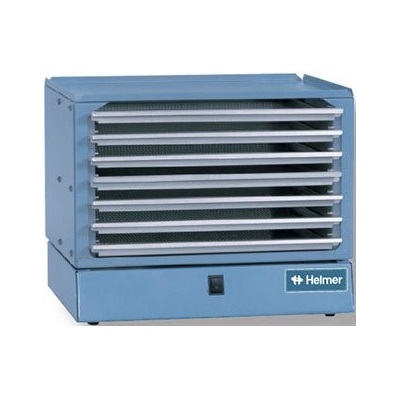

PF48h Horizon Series™ Platelet Agitator

Add to wishlistAdded to wishlistRemoved from wishlist 0

Platelet agitators are designed to support AABB guidelines by providing continual side-to-side motion for the safe storage of platelets. The PF48h offers uniform air circulation with sturdy, perforated drawers which are removable. Delrin® rollers and glides allow the drawer storage platform to agitate smoothly, eliminating the need for ball bearings which wear down and squeak.

  • Stores 48 random bags or 16 apheresis bags
  • Single fan for forced air cooling
  • Pull-out drawers for easy access to platelets
  • Heavy-duty ball bearing gear motor
  • Label holders provided for each agitator drawer. They accommodate magnetic or adhesive labels
  • Warranty includes 2 years parts and 1 year labor
  • Compatible with PC900h platelet incubator

Specification: PF48h Horizon Series™ Platelet Agitator

Base Material

Galvannealed Steel with Bacteria-Resistant Powder Coating

Dimensions (w x h x d)

18" x 15.25" x 14.5"
458mm x 388mm x 369mm

Maximum Storage Capacity

48 Random Bags
16 Apheresis Bags

Shelf

1 Stationary / Galvannealed Steel – perforated and powder coated

Drawers

7 Pull-out/removable / Galvannealed Steel – perforated and powder coated

Incubator Compatibility

PC900h

Motion Alarm

No

Electrical

100V 50/60Hz 0.4 FLA
115V 50/60Hz 0.4 FLA
230V 50/60Hz 0.25 FLA

Net Weight

51 lb / 23 kg
